Non-metal melting system
Description of the Non-metal Melting System
Combustibles and semi-combustibles, such as rubber and vinyl chloride, and incombustibles, such as glass and concrete, are treated using the Non-metal Melting System in the Waste Volume Reduction Facility (WVRF).
This system consists of the Incinerator, a Plasma furnace, and an Off gas treatment unit.
The furnace uses the plasma heating system to efficiently heat the incombustibles.
Waste Volume Reduction Facility (WVRF)
Schematic of the Non-metal Melting System
Molten-solidified waste package
Molten wastes (slag) are poured into receptacles that are packaged in 200 liter drums after cooling.. The receptacles are cast using the metal melting system.
Receptacle containing slag

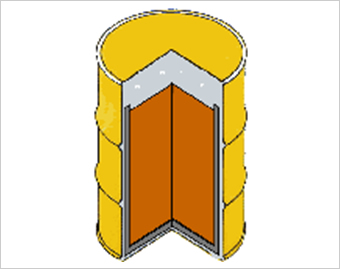

Molten-solidified waste package
Main equipment for the incinerator and the plasma furnace

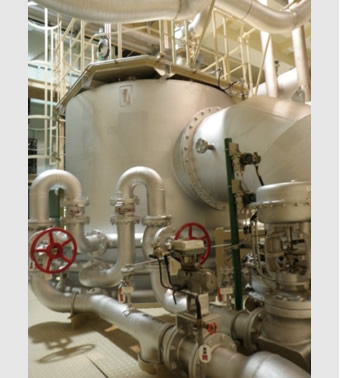

The upper part of the incinerator
The upper part of the plasma furnace
