Evaporation/Bituminization

Summary of the Evaporation System / Bituminization System

Liquid waste (categories B-1and B-2) is sent to the Waste Treatment Facility No.2 using effluent transport containers and stored in the liquid waste storage tank. The liquid waste is then evaporated using the evaporator-II after the pretreatment for pH adjustment, etc.
Moisture in the concentrate is evaporated in the bituminization mixing evaporator by mixing it with heated bitumen. As a result, the concentrate is converted into a solid compound (product) with the bitumen.
On the other hand, the condensate generated during evaporation and bituminization is released to the environment after confirming that the radioactivity levels are below the release limits.

Waste Treatment Facility No. 2
Waste Treatment Facility No. 2

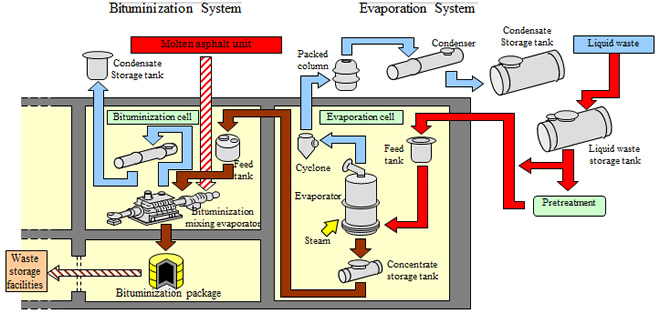

Evaporation System / Bituminization System Flow Diagram

Evaporation System / Bituminization System Flow Diagram

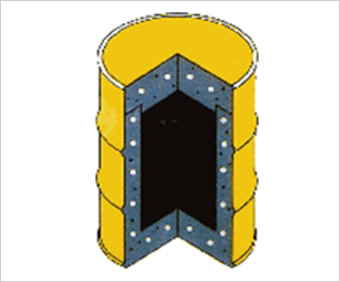

Bituminization package

This product is placed into 200 liter concrete lined drums. After cooling, the drums are sealed with concrete and stored in the waste storage facilities.

Bituminization package
Bituminization package

Main equipment

Evaporation control panel
Evaporation control panel

Evaporator
Evaporator

Bituminization mixing evaporator
Bituminization mixing evaporator

Product temperature observation device
Product temperature observation device
