About the Static Experiment Critical Facility

Critical experiments will be conducted with the Static Experiment Critical Facility (STACY), whose core is being converted from a solution-fuel type to a fuel-rod and water-moderator type.

(1) Various experimental equipment

There is a guide tube to insert pseudo-fuel-debris into the core.

(2) New fuel rods

Uncertainty regarding them will be considered negligible.

図1

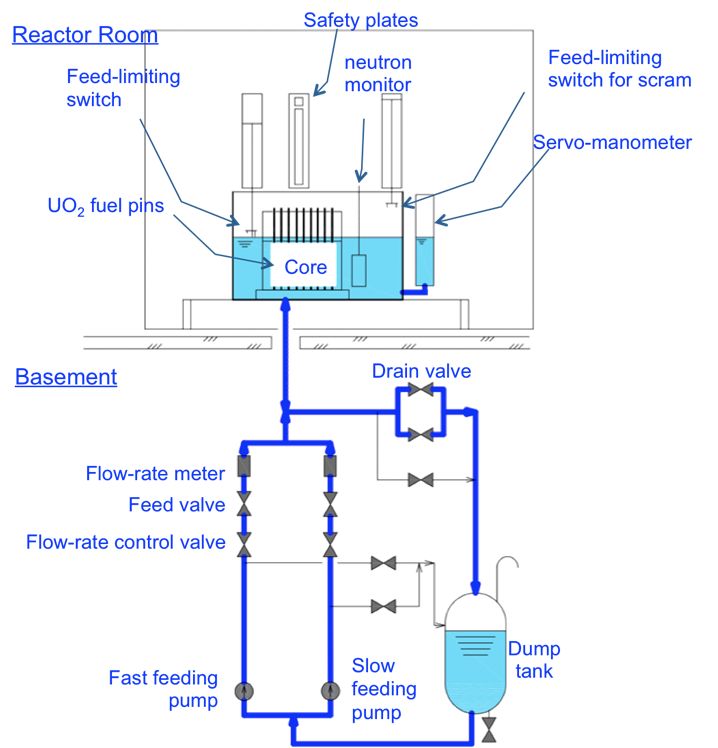

Figure 1 Schematic diagram of the modified STACY

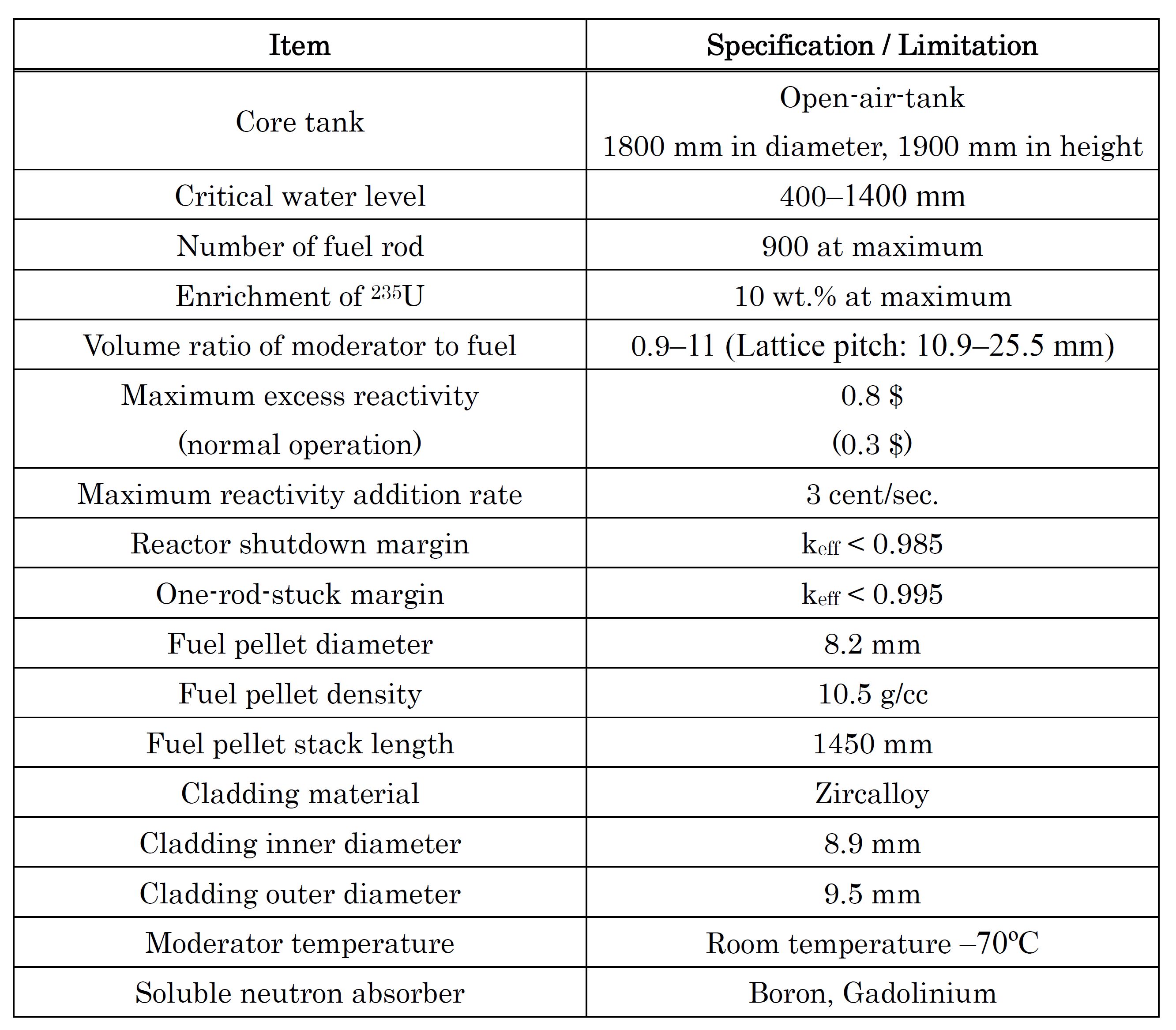

Table 1Facility specification
表1
