Incineration

Description of Incineration

Solid waste (categories A-1 and A-2), which includes combustible solid waste, is sent to the waste treatment facility No. 1 by truck. The combustible solid wastes, such as cloth, chips, vinyl acetate, and rubber gloves, are processed by the incinerator. The capacity of incinerator is 50 kg/hr.

The off-gas from the incinerator is filtered and purified through an off-gas clearing system and released to the atmosphere through the stack with continuous monitoring of the radioactive concentration. The volume reduction of waste is about 1/150 by this processing.

Waste Treatment Facility No.1
Waste Treatment Facility No.1

Schematic of the Incinerator

焼却処理装置系統図

Incineration Ash Packaging

Incineration Ash is packaged into 100 Liter stainless steel (SUS) drums, which are then placed in 200 Liter steel drums with a concrete lining. The incineration Ash Packages are stored temporarily in Storage Facilities, and are treated using the Non-metal Melting system in the Waste Volume Reduction Facility (WVRF).

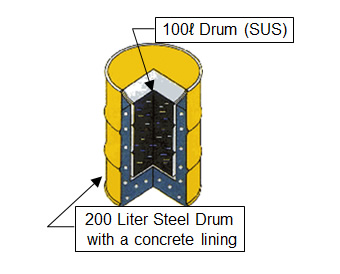

Incineration Ash Package (Image)
Incineration Ash Package (Image)

Main equipment of the incinerator

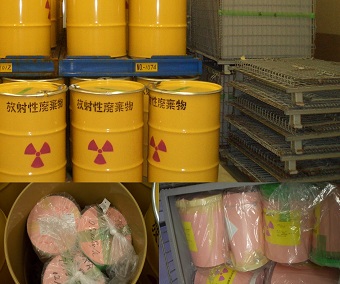

Temporary Storage for combustible waste
Temporary Storage for combustible waste

Control Panel for the Incinerator
Control Panel for the Incinerator

Incinerator
Incinerator
